Cocoon Septal Occluder


Pre-clinical Studies

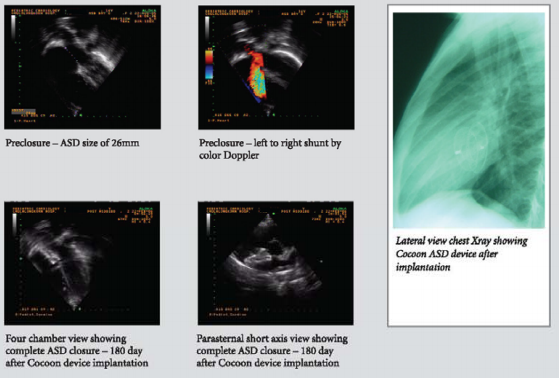

Clinical Studies



Features


  • Nanoplatinum provides superior bio-compatible properties compared to Nittinol
  • Prevents Nickel leaching into the blood stream in the hear
  • Prevents corrosion of Nittinol wire frame in long term implants
  • Platinum provides radioopacity which enabling easy positioning in the defect
  • High Success rate of closure
  • Ability to recapture and reposition
  • Ease of Deployment

Technical Details of Cocoon 24 mm sizing Balloon(COB-024)

Inflated Diameter (mm) Inflation Volume (cc)
24 20
25 22
26 24
27 26
28 28
29 30
30 32
31 34
32 36
33 38
34 40
35 42
36 44

Technical Details of Cocoon 34 mm sizing Balloon(COB-034)

Inflated Diameter (mm) Inflation Volume (cc)
34 50
35 52
36 54
37 57
38 61
39 65
40 68
41 73
42 78
43 83
44 88
45 94
46 101

Technical Specifications and Ordering Information

Catalog
Number 		Device size
(=stretched ASD) 		LA Disc
Diameter 		Width of
connecting waist		 RA Disc
Diameter 		Recommended
Sheath size
COA08 8 mm 20 mm 3 mm 18 mm 6-7 French
COA10 10 mm 22 mm 3 mm 20 mm 6-7 French
COA12 12 mm 26 mm 4 mm 22 mm 8-9 French
COA14 14 mm 28 mm 4 mm 24 mm 8-9 French
COA16 16 mm 30 mm 4 mm 26 mm 8-9 French
COA18 18 mm 32 mm 4 mm 28 mm 10-12 French
COA20 20 mm 34 mm 4 mm 30 mm 10-12 French
COA22 22 mm 36 mm 4 mm 32 mm 10-12 French
COA24 24 mm 38 mm 4 mm 34 mm 10-12 French
COA26 26 mm 40 mm 4 mm 36 mm 10-12 French
COA28 28 mm 42 mm 4 mm 38 mm 10-12 French
COA30 30 mm 44 mm 4 mm 40 mm 12-14 French
COA32 32 mm 46 mm 4 mm 42 mm 12-14 French
COA34 34 mm 50 mm 4 mm 44 mm 12-14 French
COA36 36 mm 52 mm 4 mm 46 mm 12-14 French
COA38 38 mm 54 mm 4 mm 48 mm 12-14 French
COA40 40 mm 56 mm 4 mm 50 mm 12-14 French
