0.014” guidewire compatible
Nylon copolymer balloon provides semicompliant expansion of the lesion and the stent
High radial strength peripheral stent (80-100 KN/sqm)
Stent strut width is 175 microns, strut thickness is 165 microns
No foreshortening of stent up to 20mm and less than 2% above 20mm

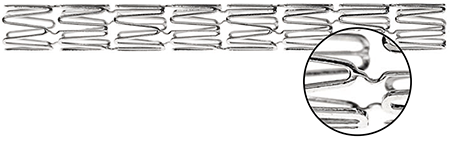

Radial Strength and exibility are optimally built into the si
x crown design of the stent.
| Usable Catheter Length 135 cm | Stent I.D at Nominal Pressure (mm) | Stent Length (mm) | Rec. I.D Introducer Sheath (F) | Rated Burst Pressure (bar) |
|---|---|---|---|---|
| PSS 400/13-135 | 4 | 13 | 5 | 16 |
| PSS 400/16-135 | 4 | 16 | 5 | 16 |
| PSS 400/18-135 | 4 | 18 | 5 | 16 |
| PSS 400/23-135 | 4 | 23 | 5 | 16 |
| PSS 400/28-135 | 4 | 28 | 5 | 16 |
| PSS 400/33-135 | 4 | 38 | 5 | 16 |
| PSS 400/38-135 | 4 | 28 | 5 | 16 |
| PSS 500/13-135 | 5 | 13 | 6 | 15 |
| PSS 500/16-135 | 5 | 16 | 6 | 15 |
| PSS 500/18-135 | 5 | 18 | 6 | 15 |
| PSS 500/23-135 | 5 | 23 | 6 | 15 |
| PSS 500/28-135 | 5 | 28 | 6 | 15 |
| PSS 500/33-135 | 5 | 33 | 6 | 15 |
| PSS 500/38-135 | 5 | 38 | 6 | 15 |
| PSS 600/13-135 | 6 | 13 | 6 | 14 |
| PSS 600/16-135 | 6 | 16 | 6 | 14 |
| PSS 600/18-135 | 6 | 18 | 6 | 14 |
| PSS 600/23-135 | 6 | 23 | 6 | 14 |
| PSS 600/28-135 | 6 | 28 | 6 | 14 |
| PSS 600/33-135 | 6 | 33 | 6 | 14 |
| PSS 600/38-135 | 6 | 38 | 6 | 14 |
| PSS 700/13-135 | 7 | 13 | 6 | 13 |
| PSS 700/16-135 | 7 | 16 | 6 | 13 |
| PSS 700/18-135 | 7 | 18 | 6 | 14 |
| PSS 700/23-135 | 7 | 23 | 6 | 13 |
| PSS 700/28-135 | 7 | 28 | 6 | 13 |
| PSS 700/33-135 | 7 | 33 | 6 | 13 |
| PSS 700/38-135 | 7 | 38 | 6 | 13 |
| PSS 800/13-135 | 8 | 13 | 6 | 12 |
| PSS 800/16-135 | 8 | 16 | 6 | 12 |
| PSS 800/18-135 | 8 | 18 | 6 | 12 |
| PSS 800/23-135 | 8 | 23 | 6 | 12 |
| PSS 800/28-135 | 8 | 28 | 6 | 12 |
| PSS 800/33-135 | 8 | 33 | 6 | 12 |
| PSS 800/38-135 | 8 | 38 | 6 | 12 |
