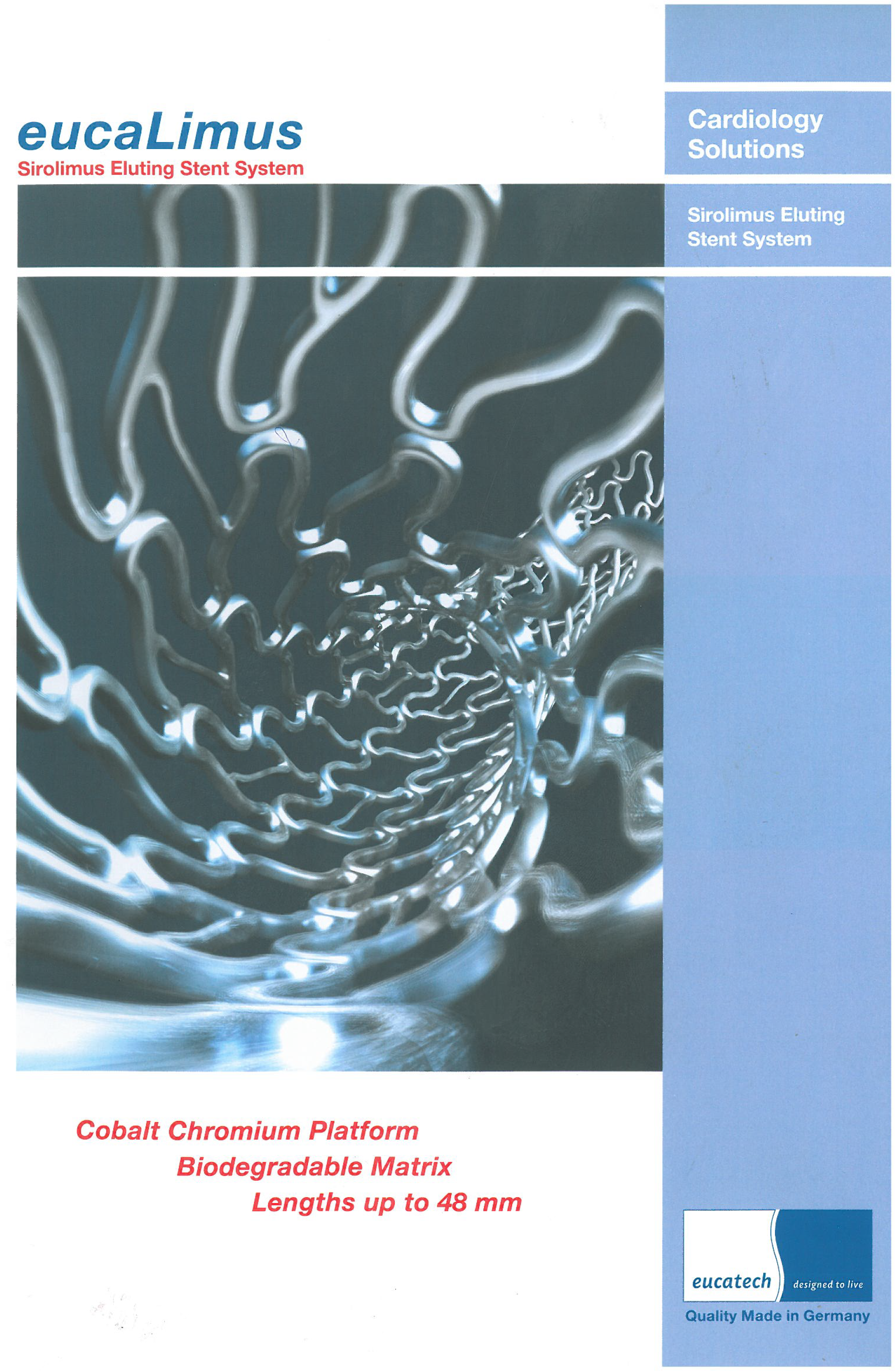

Eucalimus

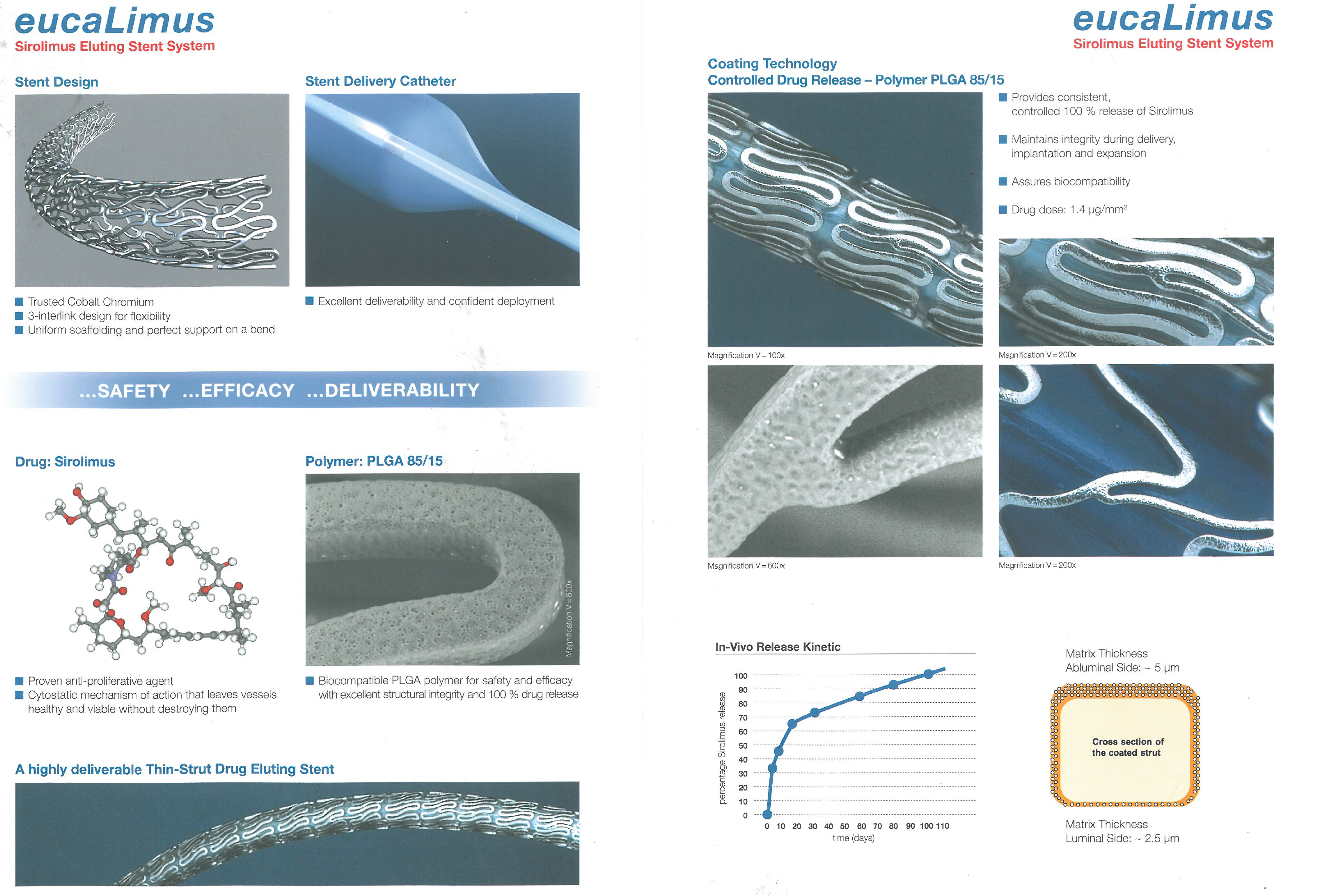

Stent Details
TYPE OF DESIGN Slotted tube,Open-cell design with 3 interlink per segment
DESIGN DETAILS 9 crown per ring segment
METERIALS cobalt chromium L 605 alloy
STRUT THICKNESS 0.0026"
STRUT WIDTH(MAIN SEGMENT) 0.0028"
STRUT WIDTH(INERLINK) 0.0023"
SHORTENING AFTER EXPANSION < 2%
MECHANICAL RECOIL < 5%
METAL COVERAGE < 15%
SIROLIMUS MATRIX THICKNESS 3-5
GUIDING CATCHER COMPATIBILITY 5 F
Stent Delivery System Details
USABLE LENGTH 138 cm
LENGTH OF GUIDE WIRE LUMN 9 crown per ring segment 27 cm
METERIALS Balloon Proprietary polyamid compund
Distal Shaft Ployamide, multilayer tube
Proximal shaft Stainless steel, PTFE coated
SHAFT SIZE Proximal 1.9 F
Distal 2.8 F
COATING Hydrophilic shaft coating
BALLOON FOLDING 3-fold balloon
MARKER BANDS Embedded Platinum/Iridium
TIP PROFILE 0.017* (0.43 mm)
MAX.RECOMMENDED GUIDE WIRE 0.014* (0.36 mm)
Order Information
Stent Length
Stent.ID 8 mm 10 mm 13 mm 16 mm 18 mm 23 mm 28 mm 33 mm 38 mm 43 mm 48 mm
2.25 mm ELM22508 ELM22510 ELM22513 ELM22516 ELM22518 ELM22523 ELM22528 - - - -
2.50 mm ELM25080 ELM25010 ELM25013 ELM25016 ELM25018 ELM25023 ELM25028 ELM25033 ELM25038 ELM25043 -
2.75 mm ELM27508 ELM27510 ELM27513 ELM27516 ELM27518 ELM27523 ELM27528 ELM27533 ELM27538 ELM27543 ELM27548
3.00 mm ELM30008 ELM30010 ELM30013 ELM30016 ELM30018 ELM30023 ELM30028 ELM30033 ELM30038 ELM30043 * ELM30048 *
3.25 mm ELM32508 ELM32510 ELM32513 ELM32516 ELM32518 ELM32523 ELM32528 ELM32533 ELM32538 ELM32543 * ELM32548 *
3.50 mm ELM35008 ELM35010 ELM35013 ELM35016 ELM35018 ELM35023 ELM35028 ELM35033 ELM35038 ELM35043 * ELM35048 *
4.00 mm ELM40008 ELM40010 ELM40013 ELM40016 ELM40018 ELM40023 ELM40028 ELM40033 ELM40038 ELM40043 * ELM40048 *
